Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Full Auto Loader PCB depaneling machine, High-Precision SMT line loader, Automated PCB unloader machine


Poids:	220 kg	Modèle:	YS-250XT
Source d'air:	0,4-0,6 MPa	Taille de rail:	920 ± 30 mm
Dimension globale:	16909151680	Dimension magazine:	535460565 mm
Dimension de carte PCB:	530*390mm	Quantité de stockage de PCB:	100 pièces
Vitesse du convoyeur:	9m / min	Emplacement de la plateforme élévatrice:	10,20,30,40
Alimentation:	220 V 50 Hz	Puissance du moteur:	90W
Moteur d'alimentation:	15W	Tapis roulant:	Ceinture plate 7M
Panneau de contrôle:	Écran tactile LED TFT

Poids:	220 kg
Modèle:	YS-250XT
Source d'air:	0,4-0,6 MPa
Taille de rail:	920 ± 30 mm
Dimension globale:	16909151680
Dimension magazine:	535460565 mm
Dimension de carte PCB:	530*390mm
Quantité de stockage de PCB:	100 pièces
Vitesse du convoyeur:	9m / min
Emplacement de la plateforme élévatrice:	10,20,30,40
Alimentation:	220 V 50 Hz
Puissance du moteur:	90W
Moteur d'alimentation:	15W
Tapis roulant:	Ceinture plate 7M
Panneau de contrôle:	Écran tactile LED TFT

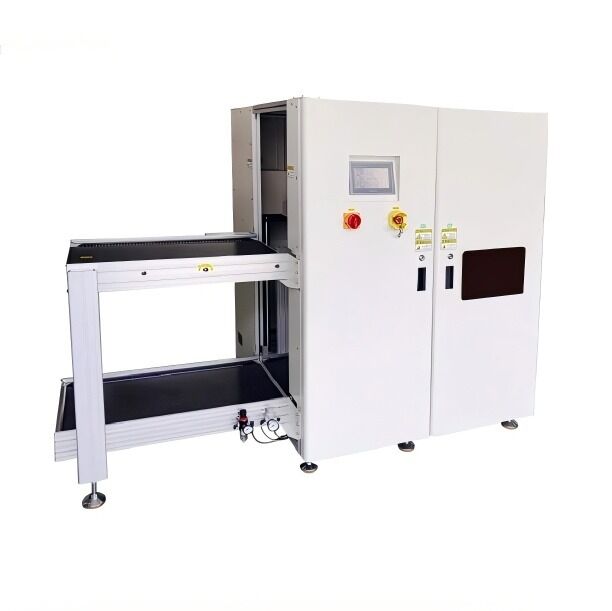

Full Auto Loader & Unloader: High-Precision Automated Smt Line

Full Auto Loader & Unloader: High-Precision Automated SMT Line

Key Features

PLC control system for precise automation
LED TFT touch screen control panel for intuitive operation
Four-step pitch selection (10, 20, 30, 40) for flexible configuration
Anti-clamping plate and foolproof functionality for enhanced safety
Bi-directional operation (left to right or right to left) as standard

Technical Specifications

Overall Dimensions	1690 × 915 × 1680 mm
Guide Rail Material	Special aluminum profile with Qianniao plastic chain
Magazine Drive	90W production brake motor with ball screw for step up/down movement
Feeding Box Transmission	15W constant speed platform motor
Clamping Mechanism	Pneumatic clamp structure
Magazine Specification	535 × 460 × 565 mm (L × W × H)
Maximum PCB Size	530 × 390 mm (L × W)
PCB Storage Capacity	100 pieces
Rail Transmission Height	920 ± 30 mm
Delivery Direction	Right to left / Left to right
Conveyor Belt	7M flat belt
Conveyor Transmission Speed	9 M/min
Lifting Platform Pitch Selection	10, 20, 30, 40
Control System	PLC programmable controller
Operation Features	Automatic board loading and board suction functionality
Control Panel	True color touch screen display
Pneumatic Components	Push plate cylinder position adjusted by screw rod
Power Supply	220V 50HZ
Air Source Requirement	0.4-0.6 MPa
