Détails de produit
Lieu d'origine: Guangdong, Chine
Nom de marque: YUSH
Conditions de paiement et d'expédition
Quantité de commande min: 1 ensemble
Prix: $20,000 / set
Poids: |
500KG |
Pouvoir: |
2 kW |
Tension: |
220V/380V |
Taille externe: |
950mm*1320mm*1540mm |
Alimentation en air: |
00,5 MPa à 0,8 MPa |
Ventilation de l'air: |
10CFM |
Zone de revêtement: |
L430*l460mm |
Modulation d'amplitude: |
50-460mm |
Hauteur du convoyeur: |
920 mm ± 30 mm |
système de contrôle: |
Ordinateur industriel + carte de contrôle de mouvement |
Type de lecteur: |
Système servo + entraînement par module à vis |
Vitesse de Max Work: |
1000 mm/s |
Précision de positionnement: |
0,01 mm |
Précision de répétition: |
0,01 mm |
Type de buse: |
2 (petite valve en caoutchouc atomisée, distribution par aiguille) |
Poids: |
500KG |
Pouvoir: |
2 kW |
Tension: |
220V/380V |
Taille externe: |
950mm*1320mm*1540mm |
Alimentation en air: |
00,5 MPa à 0,8 MPa |
Ventilation de l'air: |
10CFM |
Zone de revêtement: |
L430*l460mm |
Modulation d'amplitude: |
50-460mm |
Hauteur du convoyeur: |
920 mm ± 30 mm |
système de contrôle: |
Ordinateur industriel + carte de contrôle de mouvement |
Type de lecteur: |
Système servo + entraînement par module à vis |
Vitesse de Max Work: |
1000 mm/s |
Précision de positionnement: |
0,01 mm |
Précision de répétition: |
0,01 mm |
Type de buse: |
2 (petite valve en caoutchouc atomisée, distribution par aiguille) |
950mm × 1320mm × 1540mm | 50-60Hz | 500KG | PCB LED Nozzle Cleaning Machine | SMT Glue Dispensing Gel Equipment for Dies

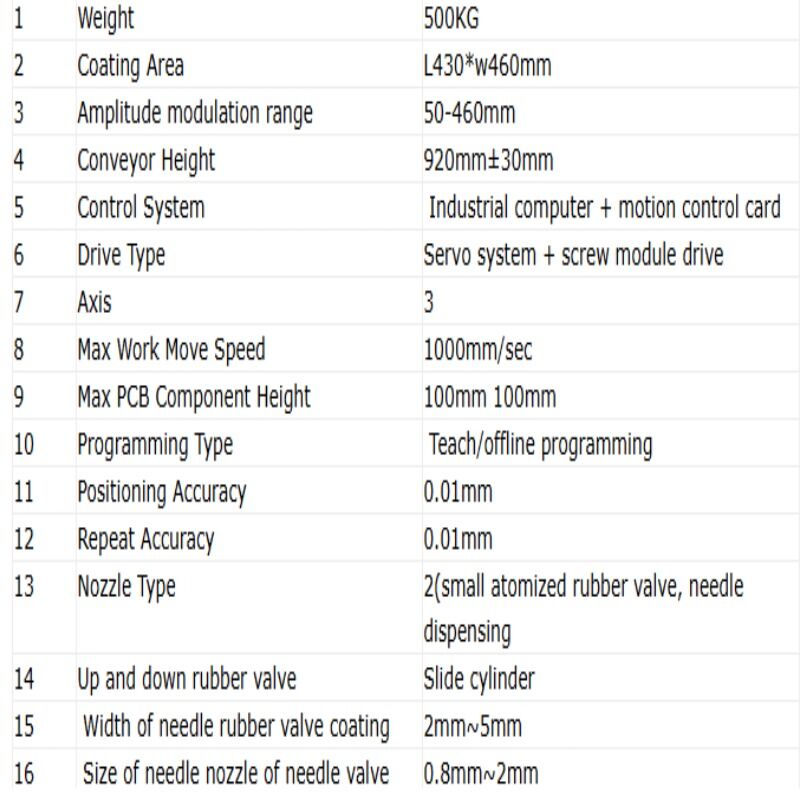

| Specification | Value |
|---|---|
| Weight | 500KG |
| Coating Area | L430 × W460mm |
| Amplitude Modulation Range | 50-460mm |
| Conveyor Height | 920mm ± 30mm |
| Control System | Industrial computer + motion control card |
| Drive Type | Servo system + screw module drive |
| Axis | 3 |
| Max Work Move Speed | 1000mm/sec |
| Max PCB Component Height | 100mm |
| Programming Type | Teach/offline programming |
| Positioning Accuracy | 0.01mm |
| Repeat Accuracy | 0.01mm |
| Nozzle Type | 2 (small atomized rubber valve, needle dispensing) |
| Up and Down Rubber Valve | Slide cylinder |
| Width of Needle Rubber Valve Coating | 2mm-5mm |
| Size of Needle Nozzle of Needle Valve | 0.8mm-2mm |
| Marginal Sharpness | ±0.5mm |
| Small Atomized Coating | 5mm-10mm |
| Coating Thickness | 0.02mm-1mm |
| Glue Tank Volume | 10L × 1, 2L × 1 |
| Glue Mixing Type | Manually stirring |
| Cleansing Function | Automatic cleaning function |
| Convulsions Part | The convulsions |
| Lighting Parts | Explosion-proof lamp |
| Testing Part | LED UV light source |
| Total Power | 1500W |
