Name: Automatic BGA Rework Station YS-520
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-520
Price: 6 USD
Availability: InStock

Détails de produit

Lieu d'origine: Guangdong, Chine

Nom de marque: YUSH

Certification: CE

Numéro de modèle: YS-520

Conditions de paiement et d'expédition

Quantité de commande min: 1 ensemble

Prix: $6,000 / set

Obtenez le meilleur prix

Détails de produit

Description du produit

Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic BGA Rework Station with warranty, YS-520 BGA Rework Station, PCB Depaneling Machine for BGA


Poids:	20 kg	Tension:	220 VCA
Pouvoir:	3800W	Puissance de chauffage supérieure:	Maximum 800W
Faible puissance de chauffage:	Max. 1200W	Puissance de chauffage par infrarouge:	Max. 1800W
Taille du PCB:	Max300×280mm Min 10×10mm	Taille de la puce:	Max60 × 60 mm Min 1 × 1 mm
Épaisseur du PCB:	0.3-5mm	Précision de la température:	±2 degrés
Capteur de température:	1 pièces	Dimension globale:	L460×L480×H500mm
Rotation de la buse:	360 degrés	Emplacement du PCB:	Emplacement pour carte en forme de V + gabarits universels
Zones de chauffage:	3 zones indépendantes

Poids:	20 kg
Tension:	220 VCA
Pouvoir:	3800W
Puissance de chauffage supérieure:	Maximum 800W
Faible puissance de chauffage:	Max. 1200W
Puissance de chauffage par infrarouge:	Max. 1800W
Taille du PCB:	Max300×280mm Min 10×10mm
Taille de la puce:	Max60 × 60 mm Min 1 × 1 mm
Épaisseur du PCB:	0.3-5mm
Précision de la température:	±2 degrés
Capteur de température:	1 pièces
Dimension globale:	L460×L480×H500mm
Rotation de la buse:	360 degrés
Emplacement du PCB:	Emplacement pour carte en forme de V + gabarits universels
Zones de chauffage:	3 zones indépendantes

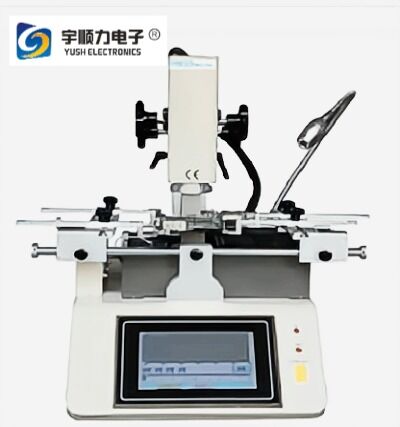

Automatic BGA Rework Station YS-520

Product Overview

The BGA Rework Station YS-520 is a professional-grade rework system designed for precision BGA chip repair and rework operations with advanced temperature control and positioning capabilities.

Key Features

High sensitivity industrial touch screen interface
Advanced temperature control module with microcontroller precision
Real-time temperature curve display and analysis on touch screen
Storage capacity for hundreds of user temperature curve profiles
Laser positioning system for fast, accurate chip center location
Independent 3-zone heating system with ±2°C temperature accuracy
360° rotatable titanium alloy BGA nozzle for versatile chip access
High accuracy K-type thermocouple closed-loop control
Built-in vacuum pen, work light, cross cooling fan, and laser light
Advanced alarm system with intelligent air regulation software
CE certified with emergency stop switch and automatic power protection
Dual over-temperature protection for safety

Technical Specifications

Power Supply	AC220V±10%, 50/60Hz
Total Power	3800W
Heating Power	Upper: Max 800W Lower: Max 1200W Infrared: Max 1800W
PCB Location	V-shape card slot + universal jigs and fixture
Temperature Control	K-type thermocouple closed-loop, ±2°C precision
Electrical Components	Touch screen + temperature module + microcontrollers
PCB Size Range	Max: 300×280mm, Min: 10×10mm
Chip Size Range	Max: 60×60mm, Min: 1×1mm
PCB Thickness	0.3-5mm
Temperature Sensors	1 piece
Dimensions	460×480×500mm (L×W×H)
Weight	20kg

Packaging & Shipping

Our Services

Company Information

YUSH Electronic Technology Co., Ltd is a specialized manufacturer and trader focused on the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, our facility benefits from convenient transportation access. All products comply with international quality standards and are appreciated in markets worldwide. We welcome custom orders and look forward to establishing successful business relationships globally.

Frequently Asked Questions

Who are we?

Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our team consists of 301-500 professionals.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment to ensure consistent quality standards.

What products do we offer?

PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.

Why choose us?

Founded in 2004 and located in Jiangsu's manufacturing hub, we bring professional expertise in PCB separator and depanelizer electronic equipment machinery with advanced production facilities and experienced technical teams.

What services do we provide?

Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
