YS-509 Blade Moving PCB Separator
The YS-509 Blade Moving PCB Separator is a precision V-cut depaneling machine designed for separating PCB arrays after soldering while protecting components and circuits from damage.
Key Features
- Reduces internal stress (500-800μE) to prevent solder cracks and component fractures
- Utilizes round blade (upper) and strip blade (lower) for clean, smooth cuts
- Microcomputer-controlled operation with counter functionality
- Adjustable round blade speed: 0-500 mm/s
- Customizable blade moving distance: 0-356/500mm
- Blade height adjustment: 0-2mm for different PCB thicknesses
- Platform height adjustable: 17-93mm
- Programmable stop positions for specific PCB lengths
- Maximum PCB width: unlimited, length: 356/500mm, thickness: 0.2-2mm
- Component height limits: Upper face 0-35mm, Lower face 0-74mm
- SKH-11 high-speed steel blades for durability and longevity
- Optional conveyor system for automated PCB removal
- Light curtain and blade shell for operator safety

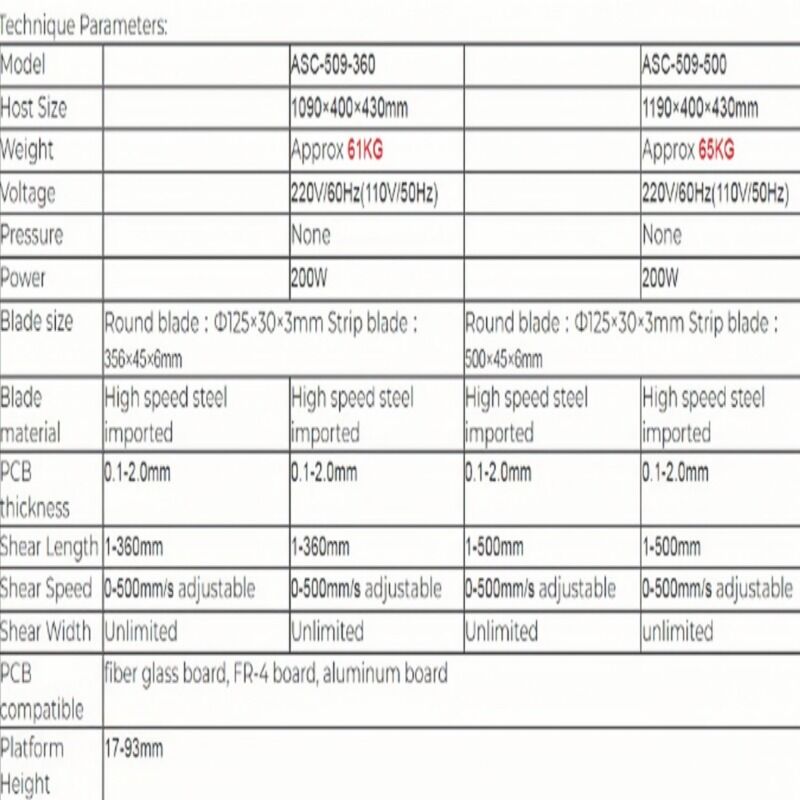

Technical Specifications
| Parameter |
Specification |
| Blade Type |
Round blade (upper), Strip blade (lower) |
| Blade Speed |
0-500 mm/s adjustable |
| Cutting Length |
0-356/500mm (customizable) |
| PCB Thickness |
0.2 to 2mm |
| Component Height Limit (Upper) |
0-35mm (3mm from V-slot) |
| Component Height Limit (Lower) |
0-74mm (25mm from V-slot) |
| Blade Material |
SKH-11 High Speed Steel |
Applications
Suitable for diversified glass fiber boards, FR-4 boards, aluminum boards, and especially for PCBs with components on both faces.
Product Images
Manufacturer Information
YUSH Electronic Technology Co., Ltd is a professional manufacturer and trader specializing in the research, development, and production of PCB depaneling machines, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, all products comply with international quality standards and serve markets worldwide.
