Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling deburring machine, PCB cutter manufacturing equipment, PCB depaneling machine with warranty


Poids:	180 kg	Pouvoir:	10 kW
Tension:	110V/220V	Longueur maximale:	330 mm
Épaisseur de coupe:	0,3-3,5 mm	Pression atmosphérique de travail:	0,5-0,7MPA
Taille:	620230400mm	Poids:	165 kg
Hauteur maximale des composants:	70mm	Distance minimale:	0,5 mm
Taille du paquet:	720mm300mm440mm	Plage d'épaisseur:	0,50-3,5 mm
Composants de base:	API, moteur	Longueur du conseil d'administration:	300 mm / 400 mm
Pression atmosphérique:	0,4-0,6 MPa

Poids:	180 kg
Pouvoir:	10 kW
Tension:	110V/220V
Longueur maximale:	330 mm
Épaisseur de coupe:	0,3-3,5 mm
Pression atmosphérique de travail:	0,5-0,7MPA
Taille:	620230400mm
Poids:	165 kg
Hauteur maximale des composants:	70mm
Distance minimale:	0,5 mm
Taille du paquet:	720mm300mm440mm
Plage d'épaisseur:	0,50-3,5 mm
Composants de base:	API, moteur
Longueur du conseil d'administration:	300 mm / 400 mm
Pression atmosphérique:	0,4-0,6 MPa

Deburring Pcb Cutter Machine . Pcb Manufacturing Equipment

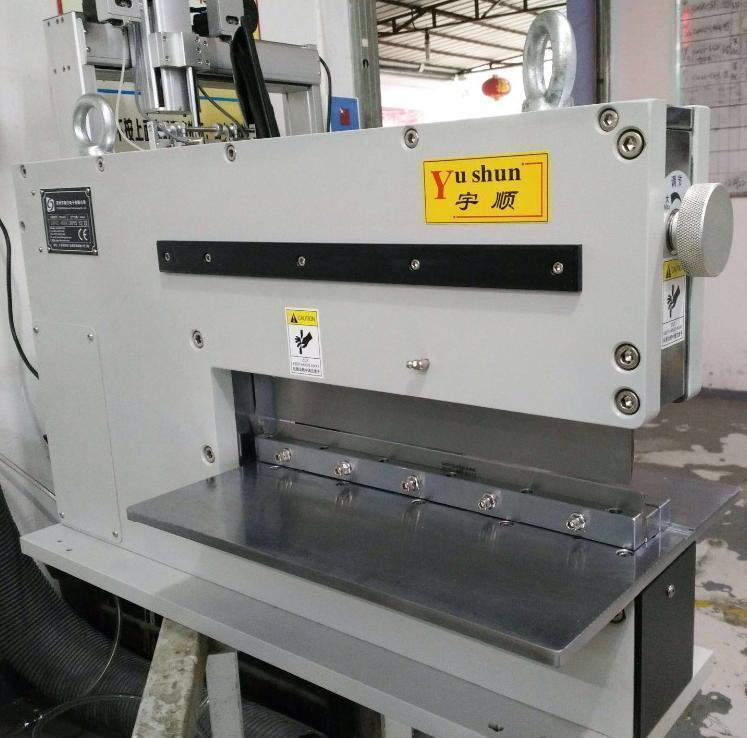

Deburring PCB Cutter Machine - PCB Manufacturing Equipment

YSVC-330 & YSVC-220 Models

Professional deburring PCB cutter machines designed for efficient PCB manufacturing operations.

Key Advantages

Easy maintenance and operation
Thin PCBs down to 0.3mm can be sheared safely
Shearing process without vibrations due to pneumatic drive unit

Technical Specifications

Max Length: 330mm (Custom sizes available)
Cutting Thickness: 0.3-3.5mm
Voltage and Power: 110V/220V
Working Air Pressure: 0.5-0.7Mpa
Speed: Dependent on operator skill level
Size: 620×230×400mm
Weight: 165kg

Advanced Features

Pneumatically driven with electromagnetic valve control
Vibration-free shearing process through pneumatic drive unit
Safe shearing of PCBs with sensitive SMD components and capacitors
Foot pedal operation for precise control
Accommodates components up to 70mm near V-groove
Minimum 0.5mm clearance between V-groove and electronic components
Easy gap adjustment via front-mounted knob

Straight Knife PCB Separator

Pneumatically driven and electrically controlled straight knife separator designed to carefully separate pre-scored panel boards without bending or tension stress. Even sensitive SMD-components like ceramic capacitors remain undamaged during separation. Special knife design safely handles boards with high components placed close to edges.

Separator Features

Vibration-free process prevents damage to precision PCBs
Easy gap adjustment via top-mounted knob with low friction design
Adjustable lower knife height with separate front/rear adjustment
No thin plates required after knife re-sharpening
Operation and maintenance suitable for unskilled personnel

PCB Manufacturing Equipment Specifications

Specification	Value
Maximum Board Length	300mm / 400mm
Package Size	720mm(L)×300mm(W)×440mm(H)
Thickness Range	0.50-3.5mm
Power Supply	220VAC / 110V
Working Air Pressure	0.4-0.6Mpa
Weight	189 kg
Application Scope	All V-CUT SMD PCB Boards
